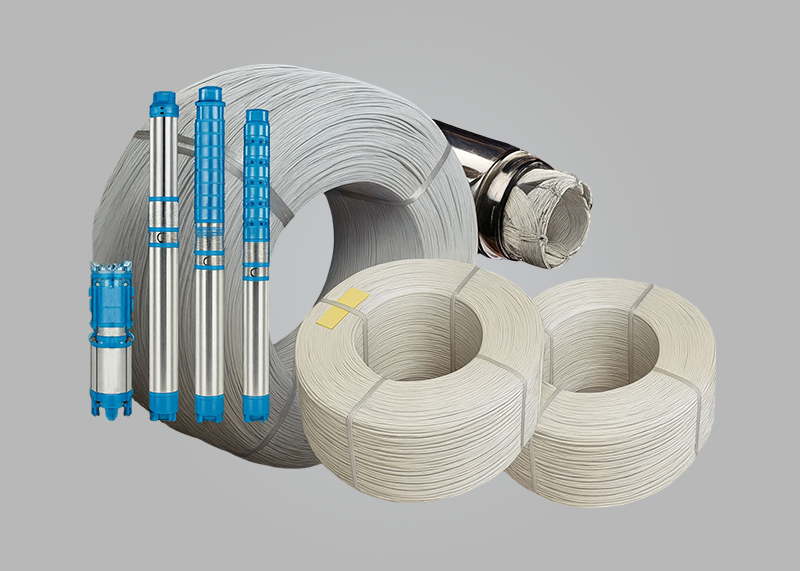

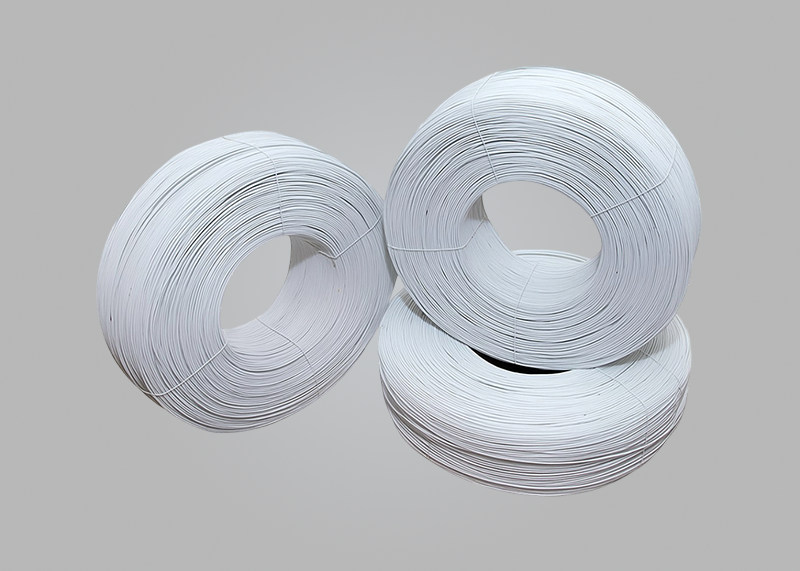

PVC Insulated Submersible Winding Wires – ISI Standard Motor Grade Quality
High-performance winding wires engineered for submersible pump motors
Our PVC Insulated Submersible Winding Wires are manufactured using high-purity copper conductors and superior grade PVC insulation to deliver excellent electrical strength, thermal resistance and long operational life. Designed specifically for submersible motor winding, these wires provide strong pressure resistance, smooth conductivity and dependable performance in continuous underwater working conditions.
Key Highlights
- Water proof
- Resistant to harsh weather condition
- Insulated with a very superior grade of HR PVC compound formulated and manufactured in house, to give to the necessary electrical strength and resistance to abrasion
- Copper conductor of required purity and conductivity is dawn and in line annealed in world-class wire drawing machine
- Automatic on-line controls in our extrusion process consistently give high quality
Designed for Heavy Duty Motor Performance
Submersible motors operate under extreme conditions of heat, pressure and moisture. Ordinary winding wires fail quickly in such environments.
Our PVC insulated winding wires are engineered to withstand:
- Continuous thermal load
- High pulling and winding stress
- Water exposure and moisture
- Long running hours without insulation breakdown
The high-grade PVC compound provides excellent abrasion resistance while the annealed copper ensures smooth current flow and low electrical loss — increasing motor efficiency and lifespan.
Quality you can trust
Each winding wire is produced under strict quality control using advanced extrusion and annealing processes. The insulation thickness is maintained uniformly to ensure strong dielectric strength and long service life.
This results in:
- Smooth winding process
- Improved electrical insulation safety
- High resistance to abrasion and heat
- Lower risk of short circuit or failure
- Extended motor life
|
Table 1 :- HR PVC Insulated winding wires as
per IS : 8783 (Part 4/ sec1) : 1995 (Soild Copper
Conductor) |
|||||||
|
Nom.Conductor Diameter(mm.) |
Nom.Cross-Sectional Area (sq. mm.) |
Min. Insulation Thickness(mm.) |
Approx Overall Diameter (mm.) |
Max. Conductor Resistance at 200C
(Ohms / Km) |
|||
|
0.80 |
0.502 |
0.30 |
1.45 |
35.00 |
|||
|
0.90 |
0.638 |
0.30 |
1.55 |
27.60 |
|||
|
1.00 |
0.785 |
0.30 |
1.65 |
22.40 |
|||
|
1.10 |
0.850 |
0.30 |
1.75 |
18.50 |
|||
|
1.20 |
1.13 |
0.30 |
1.85 |
15.50 |
|||
|
1.30 |
1.33 |
0.30 |
1.95 |
13.20 |
|||
|
1.40 |
1.54 |
0.35 |
2.15 |
11.40 |
|||
|
1.50 |
1.77 |
0.35 |
2.25 |
9.95 |
|||
|
1.60 |
2.01 |
0.35 |
2.35 |
8.75 |
|||
|
1.70 |
2.27 |
0.35 |
2.45 |
7.75 |
|||
|
1.80 |
2.54 |
0.35 |
2.55 |
6.91 |
|||
|
1.90 |
2.84 |
0.35 |
2.65 |
6.20 |
|||
|
2.00 |
3.14 |
0.45 |
2.95 |
5.60 |
|||
|
2.10 |
3.46 |
0.45 |
3.05 |
5.08 |
|||
|
2.20 |
3.80 |
0.45 |
3.15 |
4.63 |
|||
|
2.30 |
4.15 |
0.45 |
3.25 |
4.23 |
|||
|
2.40 |
4.52 |
0.50 |
3.45 |
3.89 |
|||
|
2.50 |
4.91 |
0.50 |
3.55 |
3.58 |
|||
|
2.60 |
5.31 |
0.50 |
3.65 |
3.31 |
|||
|
2.70 |
5.73 |
0.50 |
3.75 |
3.07 |
|||
|
2.80 |
6.19 |
0.55 |
3.95 |
2.86 |
|||
|
2.90 |
6.61 |
55 |
4.05 |
2.66 |
|||
|
3.00 |
7.07 |
0.55 |
4.15 |
2.49 |
|||
Physical Properties : -
The Properties of PVC compound are as given in IS 8783 (Part 2): 1995.
The Winding Wires are tested as per IS 8783 (Part 3):1995
Features
- Water proof
- Resistant to harsh weather condition
- Insulated with a very superior grade of HR PVC compound formulated and manufactured in house, to give to the necessary electrical strength and resistance to abrasion
- Copper conductor of required purity and conductivity is dawn and in line annealed in world-class wire drawing machine
- Automatic on-line controls in our extrusion process consistently give high quality
